Gynecological Electrodes

Gynecological Electrodes

UTMD’s gynecology electrodes, UtahLoop® and C-LETZ®, are trusted by women’s health providers to give high confidence of clear margins with minimal removal of healthy cervical tissue, resulting in excellent LETZ® specimen histopathology reports.

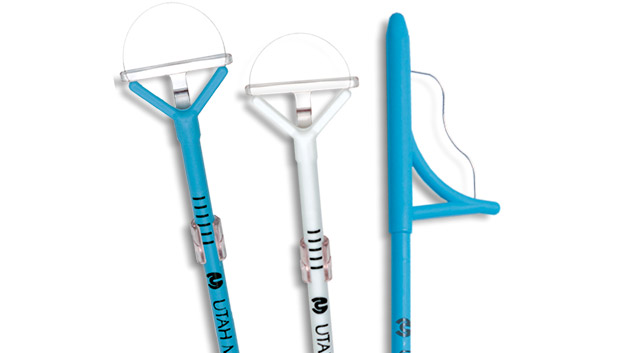

Utah Medical Product's electrosurgical electrodes have been optimally designed for the specific requirements of specialized electrosurgery. Developed through exhaustive clinical analysis, the UtahLoop® round loop electrodes include the Safe-T-Gauge® that provides greater loop stability and prevents over-excision of healthy cervical tissue. The 'Y' shaped shaft provides additional loop support and increases visibility during the cutting procedure.

  • SAFE-T-GAUGE® - The UtahLoop® electrodes have the Safe-T-Gauge® which allows the clinician to set the maximum depth of excision, preventing excessive excising of tissue and provides support to the loop wire for greater strength and stability.
  • TUNGSTEN WIRE - All loop and needle electrodes utilize high-grade tungsten wire. Because it retains its mechanical properties at a higher temperature than stainless steel, tungsten maintains better shape and wire integrity throughout the excision procedure.
  • COLOR CODING - Utah Medical Product's electrosurgical electrodes are individually color coded to help the clinician easily identify electrode dimensions during selection.
  • DISPOSABLE - All Utah Medical Product's electrosurgical electrodes are single use, disposable. This prevents cross-contamination from patient to patient and ensures the highest level of performance for each procedure.
  • STANDARD DIMENSIONS - Our electrodes all utilize the industry standard 3/32" diameter stainless steel shaft which allows easy connection to standard control pens. In addition, high-dielectric plastic insulation protects the patient and clinician from electric shock and burn.



EXTERNAL LESION ELECTRODES (5.5cm SHAFT)

Utah Medical Product's short shaft electrodes are ideal for controlled removal of external lesions, providing more utilization of office-based ESU's. Excision of lesions allows for dermatopathology of the specimen, which is not possible with ablative modalities such as cryotherapy.

C-LETZ® CONIZATION ELECTRODES

Current excisional devices for managing deep endocervical CIN lesions lack the shape needed to preserve healthy cervical tissue. Cone biopsy morbidity appears to be related to the total amount of tissue excised, demonstrating that tissue-sparing excision techniques are important to improving clinical outcomes. Traditional "straight-wire" conization electrodes excise an excess of healthy tissue, which may compromise adequate cervical function. Research has also shown that CIN involvement in most endocervical glands extends no more than 3.8 mm from the cervical surface. The C-LETZ® conization electrodes are designed from this research. Their contoured electrode shape removes a constant thickness specimen to ensure adequate removal of diseased tissue without risking excessive excision of healthy cervical tissue. The benefits are clear:

  • Potentially reduces the possibility of cervical stenosis.
  • Potentially reduces recurrence and/or progression rates.
  • Provides simultaneous hemostasis compared to cold knife conization.



DXTENDER® ELECTRODE EXTENDERS FOR LETZ®

The patented DXTender® Electrode Extenders provide a unique and effective solution for LETZ procedures.

Cervical depth varies among patients. LETZ electrode lengths that are appropriate for one patient will be insufficient to reach another patient's cervix. A traditional straight extender can provide adequate reach, but the additional length may cause hand pencil interference with the colposcope body.

Utah Medical Products, Inc's DXTender® Electrode Extenders are specially configured to provide positive tactility during the loop excision, yet keep the hand and pencil away from the colposcope and view axis.

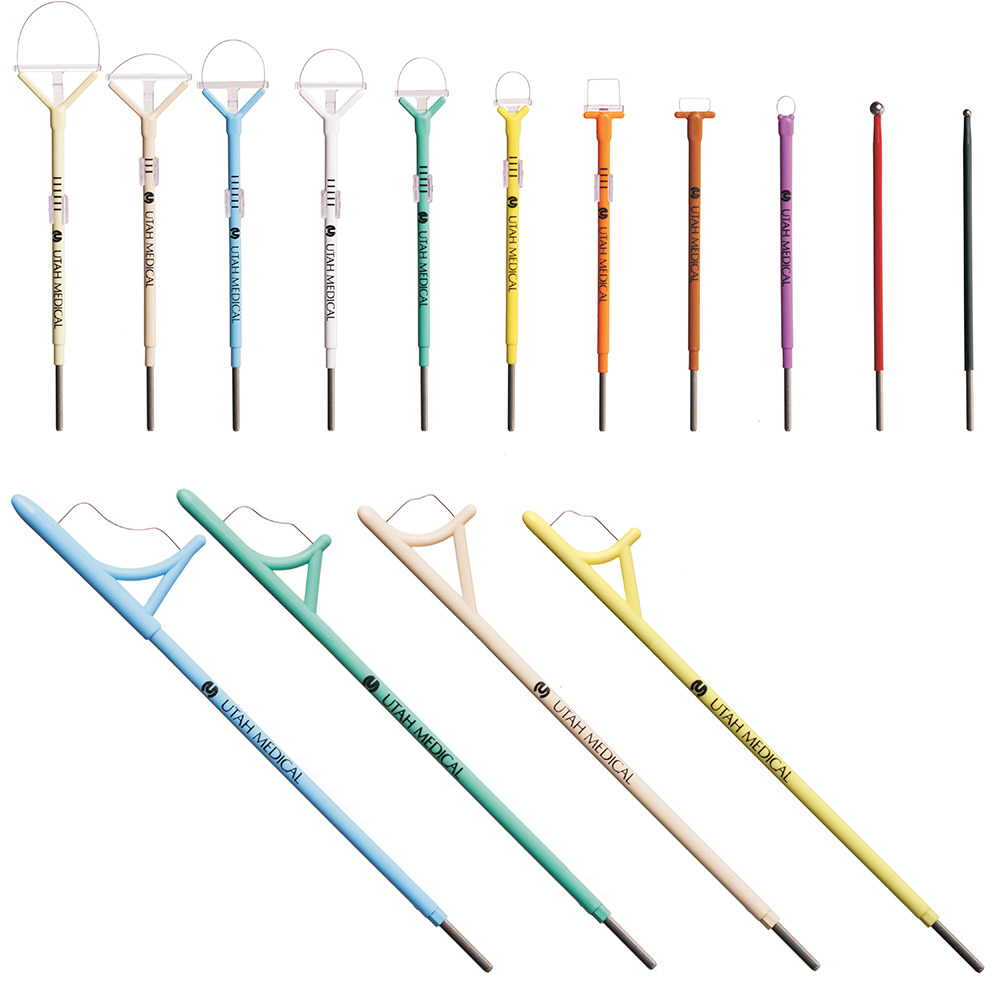

UtahLoop® LETZ® Loop Electrodes

Model Number Description Unit of Measure Image
DLP-T11 UtahLoop® Round Loop Electrode, 5mm W x 5mm L, 11cm Shaft (Purple). * 10/BOX UtahLoop® Round Loop LEEP Electrode, 5mm W x 5mm L, 11cm Shaft. Model DLP-T11
DLP-S11 UtahLoop® Round Loop Electrode, with Safe-T-Gauge®, 10mm W x 10mm L, 11cm Shaft (Yellow). * 10/BOX UtahLoop® Round Loop LEEP Electrode, with Safe-T-Gauge®, 10mm W x 10mm L, 11cm Shaft. Model DLP-S11
DLP-SQ1 UtahLoop® Cartier Square Loop Electrode, with Safe-T-Gauge®, 10mm W x 10mm L, 11cm Shaft (Orange). * 10/BOX UtahLoop® Cartier Square Loop LEEP Electrode, with Safe-T-Gauge®, 10mm W x 10mm L, 11cm Shaft. Model DLP-SQ1
DLP-SQ2 UtahLoop® Square Loop Electrode, 10mm W x 4mm L, 11cm Shaft (Brown). * 10/BOX UtahLoop® Square Loop LEEP Electrode, 10mm W x 4mm L, 11cm Shaft. Model DLP-SQ2
DLP-M11 UtahLoop® Round Loop Electrode, with Safe-T-Gauge®, 15mm W x 12mm L, 11cm Shaft (Green). * 10/BOX UtahLoop® Round Loop LEEP Electrode, with Safe-T-Gauge®, 15mm W x 12mm L, 11cm Shaft. Model DLP-M11
DLP-W11 UtahLoop® Round Loop Electrode, with Safe-T-Gauge®, 20mm W x 12mm L, 11cm Shaft (White). * 10/BOX UtahLoop® Round Loop LEEP Electrode, with Safe-T-Gauge®, 20mm W x 12mm L, 11cm Shaft. Model DLP-W11
DLP-L11 UtahLoop® Round Loop Electrode, with Safe-T-Gauge®, 20mm W x 15mm L, 11cm Shaft (Blue). * 10/BOX UtahLoop® Round Loop LEEP Electrode, with Safe-T-Gauge®, 20mm W x 15mm L, 11cm Shaft. Model DLP-L11
DLP-B11 UtahLoop® Round Loop Electrode, with Safe-T-Gauge®, 25mm W x 8mm L, 11cm Shaft (Tan). * 10/BOX UtahLoop® Round Loop LEEP Electrode, with Safe-T-Gauge®, 25mm W x 8mm L, 11cm Shaft. Model DLP-B11
DLP-E11 UtahLoop® Round Loop Electrode, with Safe-T-Gauge®, 25mm W x 22mm L, 11cm Shaft (Canary). * 10/BOX UtahLoop® Round Loop LEEP Electrode, with Safe-T-Gauge®, 25mm W x 22mm L, 11cm Shaft. Model DLP-E11
* Product is CE Marked

C-LETZ® Contoured Conization Electrodes

Model Number Description Unit of Measure Image
DCE-110 C-LETZ® Conization Electrode, Large,
15mm Cone Radius x 23mm L. *
10/BOX C-LETZ® Conization LEEP Electrode, Large, 15mm Cone Radius x 23mm L. Model DCE-110
DCE-115 C-LETZ® Conization Electrode, Medium,
11mm Cone Radius x 18mm L. *
10/BOX C-LETZ® Conization LEEP Electrode, Medium, 11mm Cone Radius x 18mm L. Model DCE-115
DCE-120 C-LETZ® Conization Electrode, Ectocervical, 12mm Cone Radius x 10mm L. * 10/BOX C-LETZ® Conization LEEP Electrode, Ectocervical, 12mm Cone Radius x 10mm L. Model DCE-120
DCE-125 C-LETZ® Conization Electrode, Small,
9mm Cone Radius x 13mm L. *
10/BOX C-LETZ® Conization LEEP Electrode, Small, 9mm Cone Radius x 13mm L. Model DCE-125
* Product is CE Marked

UtahLoop® External Lesion Loop Electrodes

Model Number Description Unit of Measure Image
DLP-T05 UtahLoop® External Lesion Round Loop Electrode, 5mm W x 5mm L, 5.5cm Shaft (Purple). *
10/BOX UtahLoop® External Lesion Round Loop Electrode, 5mm W x 5mm L, 5.5cm Shaft. Model DLP-T05
DLP-S05 UtahLoop® External Lesion Round Loop Electrode, 10mm W x 10mm L, 5.5cm Shaft (Yellow). * 10/BOX UtahLoop® External Lesion Round Loop Electrode, 10mm W x 10mm L, 5.5cm Shaft. Model DLP-S05
DLP-M05 UtahLoop® External Lesion Round Loop Electrode, 15mm W x 12mm L, 5.5cm Shaft (Green). * 10/BOX UtahLoop® External Lesion Round Loop Electrode, 15mm W x 12mm L, 5.5cm Shaft. Model DLP-M05
DLP-B05 UtahLoop® External Lesion Round Loop Electrode, 25mm W x 8mm L, 5.5cm Shaft (Tan). * 10/BOX UtahLoop® External Lesion Round Loop Electrode, 25mm W x 8mm L, 5.5cm Shaft. Model DLP-B05
DLP-SQ3 UtahLoop® External Lesion Square Loop Electrode, 10mm W x 4mm L, 5.5cm Shaft (Pink). * 10/BOX UtahLoop® External Lesion Square Loop Electrode, 10mm W x 4mm L, 5.5cm Shaft. Model DLP-SQ3
* Product is CE Marked

Needle Electrodes

Model Number Description Unit of Measure Image
DLP-N11 Macro Needle Electrode, 0.8mm dia x 15mm L, 11cm Shaft (Red). * 10/BOX Macro Needle Electrode, 0.8mm dia x 15mm L, 11cm Shaft. Model DLP-N11
DLP-U11 Micro Needle Electrode, 0.2mm dia x 15mm L, 11cm Shaft (Black). * 10/BOX Micro Needle Electrode, 0.2mm dia x 15mm L, 11cm Shaft. Model DLP-U11
DLP-N05 External Lesion Macro Needle Electrode, 0.8mm dia x 5mm L, 5.5cm Shaft (Red). * 10/BOX External Lesion Macro Needle Electrode, 0.8mm dia x 5mm L, 5.5cm Shaft. Model DLP-N05
DLP-U05 External Lesion Micro Needle Electrode, 0.2mm dia x 5mm L, 5.5cm Shaft (Black). * 10/BOX External Lesion Micro Needle Electrode, 0.2mm dia x 5mm L, 5.5cm Shaft. Model DLP-U05
* Product is CE Marked

UtahBall® Ball Electrodes

Model Number Description Unit of Measure Image
DBL-311 UtahBall® Ball Electrode, 3mm dia, 11cm Shaft (Black). * 10/BOX UtahBall® Ball Electrode, 3mm dia, 11cm Shaft. Model DBL-311
DBL-511 UtahBall® Ball Electrode, 5mm dia, 11cm Shaft (Red). * 10/BOX UtahBall® Ball Electrode, 5mm dia, 11cm Shaft. Model DBL-511
DBL-505 UtahBall® External Lesion Ball Electrode, 5mm dia, 5.5cm Shaft (Red). * 10/BOX UtahBall® External Lesion Ball Electrode, 5mm dia, 5.5cm Shaft. Model DBL-505
* Product is CE Marked

DXTender® Electrode Extenders

Model Number Description Unit of Measure Image
DXT-S06 DXTender® Electrode Extender, small. * 1 10/BOX DXTender™ LEEP Electrode Extender, small. Model DXT-S06
DXT-L09 DXTender® Electrode Extender, large. * 1 10/BOX DXTender™ LEEP Electrode Extender, large. Model DXT-L09
DLP-X10 Electrode Extender, straight 11cm shaft. * 10/BOX Electrode Extender, straight 11cm shaft. Model DLP-X10
* Product is CE Marked
1 Patented Product, U.S. Patent # 9,173,703

Electrode Sampler Kits

Model Number Description Unit of Measure Image
DLS-100 Electrode Sampler Kit #1, includes 1 ea. of DBL-311, DBL-511, DLP-S11, DLP-W11, and 2 ea. DLP-M11. * 1/EA
DLS-200 Electrode Sampler Kit #2, includes 2 ea. of DBL-311, DBL-511, DLP-S11; and 3 ea. of DLP-M11 and DLP-W11. * 1/EA
DLS-300 Electrode Sampler Kit #3, includes 1 ea. of DBL-311, DBL-511, DLP-B11, DLP-L11, DLP-M11, DLP-S11, DLP-T11, DLP-W11, and DLP-SQ1. * 1/EA
* Product is CE Marked

For more information, please contact us by EMAIL or call 1-800-533-4984 | 1-801-566-1200.
