Gynecological Instruments

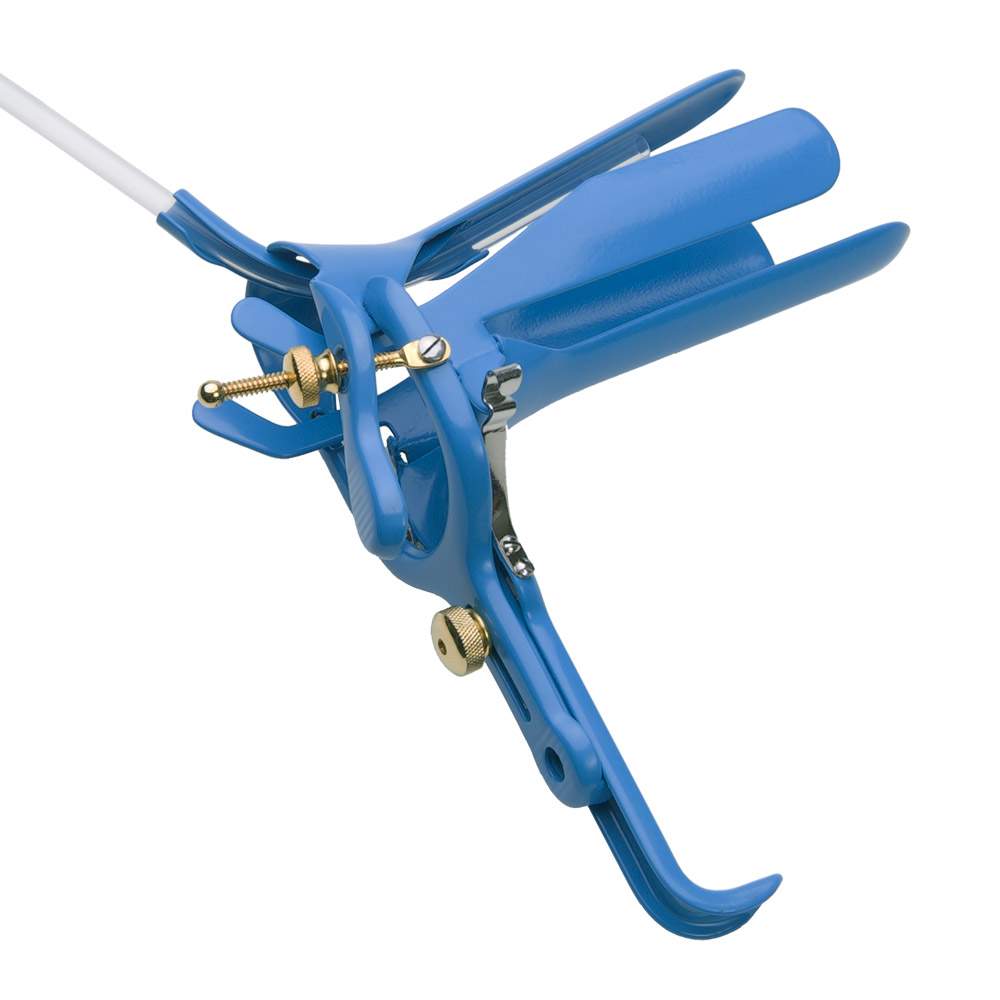

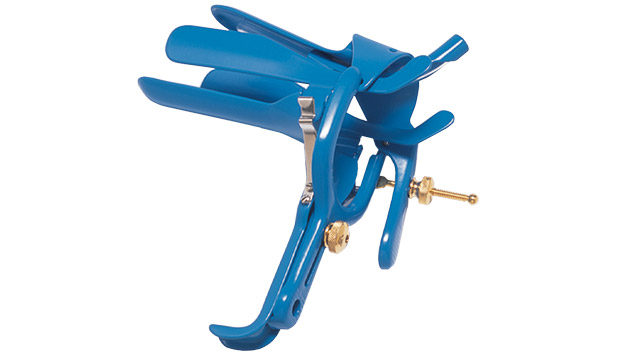

LETZ-Coated Four-Way Vaginal Expander

UTMD’s specially selected instruments help gynecologists provide safe electrosurgical procedures.

As part of our commitment to providing physicians with a complete line of products for the LETZ® procedure, Utah Medical Products® offers a full range of coated instruments that have been especially selected to provide the patient and the physician with the highest level of performance and protection.

  • NON-CONDUCTIVE COATING - Reusable instruments have a special, extremely durable coating designed to insulate against transmission of electrical current
  • SMOKE EVACUATION PORT - All specula allow for complete removal of the smoke plume from the operating field
  • CLEANING/STERILIZATION - All coated instruments can be processed using standard cold soak, autoclave or Sterrad® methods



FOUR-WAY VAGINAL EXPANDERS

Our line of Four-Way Vaginal Expanders provides a new approach to the visualization of the cervix during examinations, colposcopy, and LETZ® procedures. The Expanders feature two laterally opening blades, which solidly retain collapsing vaginal walls, ensuring clear access to the cervix for Pap Smears.

  • Eliminates the need to use both a speculum and lateral retractor.
  • Available in plastic resin, uncoated stainless steel, and LETZ® - coated stainless steel configurations -- all of which are autoclavable.
  • Side blades activated on demand for enhanced cervical view and access.
  • Narrow blades improve patient comfort during insertion.
  • An optional instrument holder and line of custom instruments are available for hands-free physician assistance.



Four-Way Vaginal Expander Systems

Model Number Description Unit of Measure Image
ES-16101-MPL Plastic Four-Way Expander, Medium (4.25 in. x .75 in. blades). 1 1/EA Electrode Extender, straight 11cm shaft. Model DLP-X10
ES-16110-LPL Plastic Four-Way Expander, Large (4.75 in. x .75 in. blades). 1 1/EA Electrode Extender, straight 11cm shaft. Model DLP-X10
ES-16121-MST Stainless Steel Four-Way Expander, Medium (4.25 in. x .75 in. blades). * 1/EA Electrode Extender, straight 11cm shaft. Model DLP-X10
ES-16131-LST Stainless Steel Four-Way Expander, Large (4.75 in. x .75 in. blades). * 1/EA Electrode Extender, straight 11cm shaft. Model DLP-X10
ES-16134-XST Stainless Steel Four-Way Expander, Extra Large (6 in. x 1 in. blades). * 1/EA Electrode Extender, straight 11cm shaft. Model DLP-X10
ES-16122-MLE LETZ-Coated Four-Way Expander, Medium (4.25 in. x .75 in. blades). 1 1/EA Electrode Extender, straight 11cm shaft. Model DLP-X10
ES-16132-LLE LETZ-Coated Four-Way Expander, Large (4.75 in. x .75 in. blades). 1 1/EA Electrode Extender, straight 11cm shaft. Model DLP-X10
ES-16135-XLE LETZ-Coated Four-Way Expander, Extra Large (6 in. x 1 in. blades). 1 1/EA Electrode Extender, straight 11cm shaft. Model DLP-X10
ES-16141-INS Instrument Holder for Four-Way Expanders. * 1/EA
ES-16145-TUB Disposable Smoke Evacuation (DSE) Tubing. * 50/BOX
* Product is CE Marked
1 Requires DSE Tubing

Specula

Model Number Description Unit of Measure Image
ESI-100 Graves Speculum, Small (3.75 in. x 1.5 in. blades). * 1/EA Electrode Extender, straight 11cm shaft. Model DLP-X10
ESI-101 Graves Speculum, Medium (4.25 in. x 1.5 in. blades). * 1/EA Electrode Extender, straight 11cm shaft. Model DLP-X10
ESI-102 Graves Speculum, Large (4.75 in. x 1.5 in. blades). * 1/EA Electrode Extender, straight 11cm shaft. Model DLP-X10
ES-15162-XSLT Extended Graves Speculum, Extra Long (6 in. x 1.4 in. blades). * 1/EA Electrode Extender, straight 11cm shaft. Model DLP-X10
ESI-110 Pederson Speculum, Small (3.75 in. x .9 in. blades). * 1/EA Electrode Extender, straight 11cm shaft. Model DLP-X10
ESI-111 Pederson Speculum, Medium (4.25 in. x .9 in. blades). * 1/EA Electrode Extender, straight 11cm shaft. Model DLP-X10
ESI-112 Pederson Speculum, Large (4.75 in. x .9 in. blades). * 1/EA Electrode Extender, straight 11cm shaft. Model DLP-X10
ESI-117 Pederson View-Maxi Speculum, Medium (4.25 in. x .9 in. blades). * 1/EA Electrode Extender, straight 11cm shaft. Model DLP-X10
ESI-118 Pederson View-Maxi Speculum, Large (4.75 in. x .9 in. blades). * 1/EA Electrode Extender, straight 11cm shaft. Model DLP-X10
ESI-121 Collin Speculum, Medium (4.25 in. x 1.375 in. blades). * 1/EA Electrode Extender, straight 11cm shaft. Model DLP-X10
ESI-122 Collin Speculum, Large (4.25 in. x 1.625 in. blades). * 1/EA Electrode Extender, straight 11cm shaft. Model DLP-X10
ESI-131 Weisman-Graves Speculum, Medium, Left Open (4.25 in. x 1.5 in. blades). * 1/EA Electrode Extender, straight 11cm shaft. Model DLP-X10
ESI-132 Weisman-Graves Speculum, Large, Left Open (4.75 in. x 1.5 in. blades). * 1/EA Electrode Extender, straight 11cm shaft. Model DLP-X10
ESI-133 Weisman-Graves Speculum, Medium, Right Open (4.25 in. x 1.5 in. blades). * 1/EA Electrode Extender, straight 11cm shaft. Model DLP-X10
ESI-134 Weisman-Graves Speculum, Large, Right Open (4.75 in. x 1.5 in. blades). * 1/EA Electrode Extender, straight 11cm shaft. Model DLP-X10
ESI-140 Kogan Endocervical Speculum, Standard (5 mm wide blades). * 1/EA Electrode Extender, straight 11cm shaft. Model DLP-X10
ESI-141 Kogan Endocervical Speculum, Narrow (3 mm wide blades). * 1/EA Electrode Extender, straight 11cm shaft. Model DLP-X10
ESI-151 Graves Wide View Speculum, Medium (4.25 in. x 1.5 in. blades). * 1/EA Electrode Extender, straight 11cm shaft. Model DLP-X10
ESI-152 Graves Wide View Speculum, Large (4.75 in. x 1.5 in. blades). * 1/EA Electrode Extender, straight 11cm shaft. Model DLP-X10
ESI-171 Graves View-Maxi Speculum, Medium (4.25 in. x 1.5 in. blades). * 1/EA Electrode Extender, straight 11cm shaft. Model DLP-X10
ESI-172 Graves View-Maxi Speculum, Large (4.75 in. x 1.5 in. blades). * 1/EA Electrode Extender, straight 11cm shaft. Model DLP-X10
ESI-191 Disposable Speculum, Medium (4 in. x 1.25 in. blades). 10/BOX Electrode Extender, straight 11cm shaft. Model DLP-X10
ESI-192 Disposable Speculum, Large (4 in. x 1.25 in. blades). 10/BOX Electrode Extender, straight 11cm shaft. Model DLP-X10
ESI-300 Lateral Vaginal Retractor (3.25 in. x .75 in. blades). * 1/EA Electrode Extender, straight 11cm shaft. Model DLP-X10
* Product is CE Marked

Tenacula

Model Number Description Unit of Measure Image
ES-16201-SCT Schroeder Tenaculum (uncoated tips). * 1/EA Electrode Extender, straight 11cm shaft. Model DLP-X10
ES-16207-STT Atraumatic Single-Tooth Tenaculum (coated tips). *
1/EA Electrode Extender, straight 11cm shaft. Model DLP-X10
* Product is CE Marked

Forceps

Model Number Description Unit of Measure Image
ESI-401 Tissue Forceps, 8 in. * 1/EA Electrode Extender, straight 11cm shaft. Model DLP-X10
ESI-402 Tissue Forceps, 10 in. * 1/EA Electrode Extender, straight 11cm shaft. Model DLP-X10
ESI-403 Dressing Forceps, 8 in. * 1/EA Electrode Extender, straight 11cm shaft. Model DLP-X10
ESI-404 Dressing Forceps, 10 in. * 1/EA Electrode Extender, straight 11cm shaft. Model DLP-X10
ES-16215-LRF Ring Forceps, 9 in. * 1/EA Electrode Extender, straight 11cm shaft. Model DLP-X10
* Product is CE Marked

Hooks

Model Number Description Unit of Measure Image
ES-16203-IRH Iris Hook, 10 in. (with angled shaft). * 1/EA Electrode Extender, straight 11cm shaft. Model DLP-X10
ES-16205-EMT Emmett Hook, 10 in. (with angled shaft). * 1/EA Electrode Extender, straight 11cm shaft. Model DLP-X10
ES-16209-LEH Straight Hook, 10 in. (with angled shaft). * 1/EA Electrode Extender, straight 11cm shaft. Model DLP-X10
ES-16211-TPH Two-Prong Hook, 10 in. (with angled shaft). * 1/EA Electrode Extender, straight 11cm shaft. Model DLP-X10
ES-16213-TRH Three-Prong Hook, 10 in. (with angled shaft). * 1/EA Electrode Extender, straight 11cm shaft. Model DLP-X10
* Product is CE Marked



STERRAD® is a registered trademark of Advanced Sterilization Products.

For more information, please contact us by EMAIL or call 1-800-533-4984 | 1-801-566-1200.
