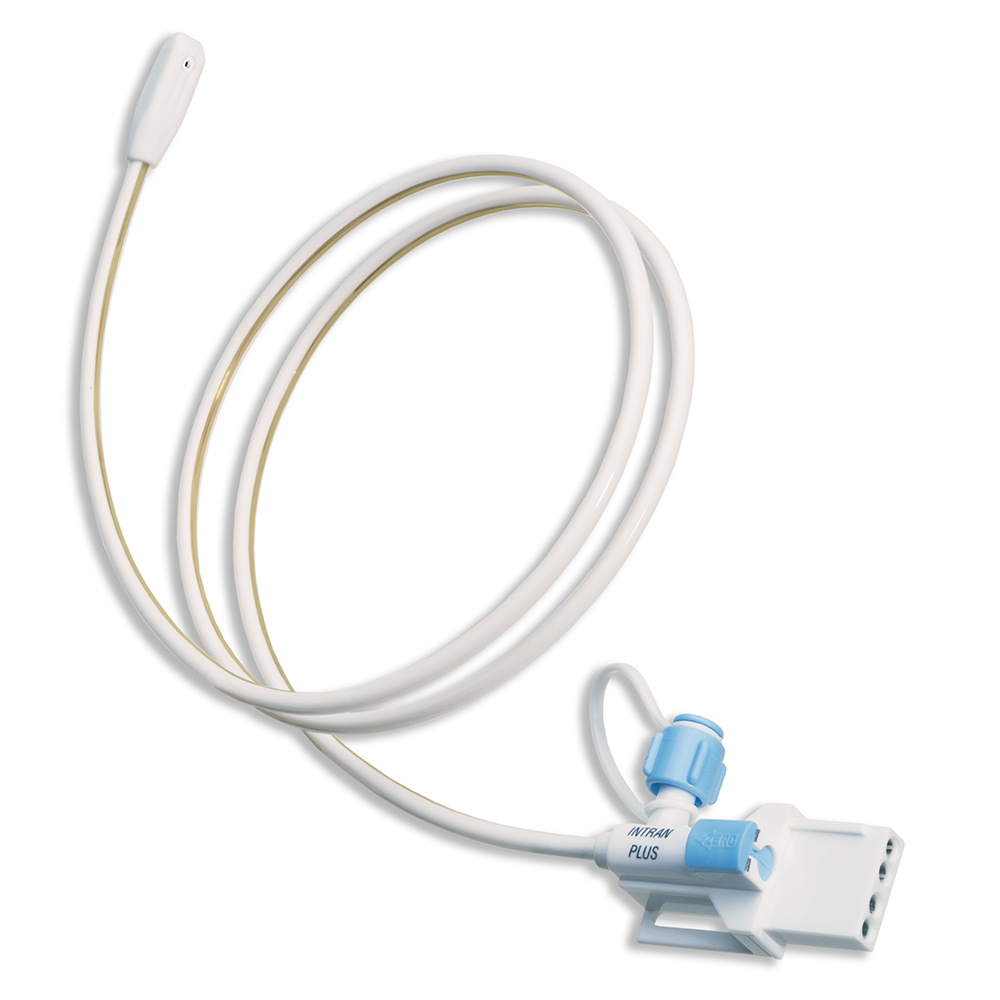

Intran® Plus Intrauterine Pressure Catheters

Intran® Plus Intrauterine Pressure Catheters

Intran® Plus is the original transducer-tipped intrauterine pressure catheter (IUPC) preferred by thousands of clinicians for its unrivaled accuracy, safety and reliability.

The sensitive, single-use pressure transducer of Intran® Plus is located at the tip of the catheter that is placed inside the uterus. Placement of the transducer inside the uterus ensures that clinical decisions are based on the most accurate contraction frequency, duration, resting tone and peak pressure data.

The transducer of Intran® Plus is encapsulated in a soft, blunt boot which prevents partial obstruction by maternal or fetal tissue from affecting the pressure tracing. Coupled with the proprietary SensaFlex™ tubing material of Intran® Plus, the blunt tip allows clinicians to sense and avoid tissue obstructions prior to causing injury. Since its release in 1991, over 5 million Intran® Plus IUPC's have been used without a single reported serious injury.*

The Unique Design of Intran® Plus:

  • INSERTION TACTILITY & SAFETY: Intran® Plus is designed with SensaFlex™, a tactile tubing material that is stiff enough to allow insertion while maintaining the pliability necessary to avoid injuries. Combined with the soft, blunt tip of Intran® Plus, SensaFlex™ tubing allows the clinician to sense tissue obstructions prior to causing injury.
  • TIP SIZE AND SHAPE: Intran® Plus is available in small and regular catheter tip sizes. The small tip (.19" H x .25" W x .90" L) may be slightly easier to introduce through tightly stretched cervical tissues. The regular tip (.25" H x .30" W x 1" L) is also inserted easily but is the optimal size, shape and softness to facilitate safe placement and avoidance of patient tissue injury.
  • DUAL LUMEN DESIGN & AMNIOINFUSION: The dual lumen design of Intran® Plus allows simultaneous monitoring of uterine contractions and baseline readings while amnioinfusing.

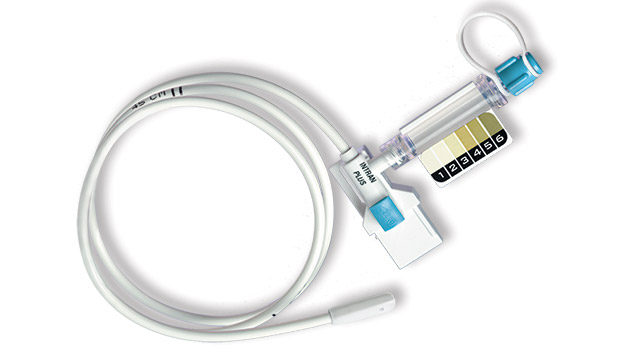

  • AMNIOTIC FLUID VISUALIZATION: All Intran® Plus configurations are designed with a clear covering over the lumen used for amnioinfusion (Amniolumen). Clinicians may use the clear Amniolumen to assess amniotic fluid return upon IUPC placement or for visualization of fluid during the course of labor. The Amnio View Port option provides a convenient means of amniotic fluid visualization and includes a meconium color scale to facilitate observation of changes in meconium color over time.
  • RE-ZERO CAPABILITIES: The Intran® Plus IUPC system typically requires a single monitor zeroing procedure. However, a convenient method for re-zeroing the system is provided through the availability of a re-zero switch on the catheter or button on the re-usable cable.
  • LATEX-FREE: Intran® Plus contains no latex or latex by-products.



* The FDA Manufacturer And User Device Experience (MAUDE) database represents reports of adverse events involving medical devices. The online search allows viewing of CDRH (Center for Devices and Radiological Health) database information about medical devices which may have malfunctioned or caused a death or serious injury.

http://www.accessdata.fda.gov/scripts/cdrh/cfdocs/cfmaude/search.cfm

Intran® Plus Transducer-Tipped IUP Catheters

Model Number Description Unit of Measure Image
IUP-400 Intran® Plus Transducer-Tipped IUPC with Catheter Zero and Amniolumen. *
[ Instructions for Use ]
10/BOX Intran® Plus Transducer-Tipped IUPC. Model IUP-400
IUP-450 Intran® Plus Transducer-Tipped IUPC (small tip) with Catheter Zero and Amniolumen. *
[ Instructions for Use ]
10/BOX Intran® Plus Transducer-Tipped IUPC. Model IUP-450
IUP-500 Intran® Plus Transducer-Tipped IUPC with Catheter Zero, Meconium Viewport and Amniolumen. *
[ Instructions for Use ]
10/BOX Intran® Plus Transducer-Tipped IUPC. Model IUP-500
IUP-550 Intran® Plus Transducer-Tipped IUPC (small tip) with Catheter Zero, Meconium Viewport and Amniolumen. *
[ Instructions for Use ]
10/BOX Intran® Plus Transducer-Tipped IUPC. Model IUP-550
IUP-600 Intran® Plus Transducer-Tipped IUPC with Zero Switch on Reusable Cable and Amniolumen. *
[ Instructions for Use ]
10/BOX Intran® Plus Transducer-Tipped IUPC. Model IUP-600
IUP-650 Intran® Plus Transducer-Tipped IUPC (small tip) with Zero Switch on Reusable Cable and Amniolumen *
[ Instructions for Use ]
10/BOX Intran® Plus Transducer-Tipped IUPC. Model IUP-650
IUP-700 Intran® Plus Transducer-Tipped IUPC with Meconium Viewport, Zero Switch on Reusable Cable and Amniolumen. *
[ Instructions for Use ]
10/BOX Intran® Plus Transducer-Tipped IUPC. Model IUP-700
IUP-750 Intran® Plus Transducer-Tipped IUPC (small tip) with Meconium Viewport, Zero Switch on Reusable Cable and Amniolumen. *
[ Instructions for Use ]
10/BOX Intran® Plus Transducer-Tipped IUPC. Model IUP-750
* Product is CE Marked

Reusable Intrauterine Pressure Monitoring Interface Cables

Model Number Description Unit of Measure Image
650-205 Reusable Intrauterine Pressure Monitor Interface Cable for Philips/HP Monitors (not Philips Avalon). *

Use with Intran® Plus Models:
IUP-400, IUP-450, IUP-500, IUP‑550
1/EA Intrauterine Pressure Monitor Cable. Model 650-205
650-207 Reusable Intrauterine Pressure Monitor Interface Cable for Philips/HP 8030A (5uv). *

Use with Intran® Plus Models:
IUP-400, IUP-450, IUP-500, IUP‑550
1/EA Intrauterine Pressure Monitor Cable. Model 650-207
650-231 Reusable Intrauterine Pressure Monitor Interface Cable for GE/Corometrics Monitors. *

Use with Intran® Plus Models:
IUP-400, IUP-450, IUP-500, IUP‑550
1/EA Intrauterine Pressure Monitor Cable. Model 650-231
650-240 Reusable Intrauterine Pressure Monitor Interface Cable for Philips Avalon Monitors. *

Use with Intran® Plus Models:
IUP-400, IUP-450, IUP-500, IUP‑550
1/EA Intrauterine Pressure Monitor Cable. Model 650-240
650-240G Reusable Intrauterine Pressure Monitor Interface Cable for Philips Avalon Monitors
(Cable is gray in color). *

Use with Intran® Plus Models:
IUP-400, IUP-450, IUP-500, IUP‑550
1/EA Intrauterine Pressure Monitor Cable. Model 650-240
650-605 Reusable Intrauterine Pressure Monitor Interface Cable with Zero Switch for Philips/HP Monitors (not Philips Avalon). *

Use with Intran® Plus Models:
IUP-600, IUP-650, IUP-700, IUP‑750
1/EA Intrauterine Pressure Monitor Cable. Model 650-605
650-631 Reusable Intrauterine Pressure Monitor Interface Cable with Zero Switch for
GE/Corometrics Monitors. *

Use with Intran® Plus Models:
IUP-600, IUP-650, IUP-700, IUP‑750
1/EA Intrauterine Pressure Monitor Cable. Model 650-631
650-640 Reusable Intrauterine Pressure Monitor Interface Cable with Zero Switch for Philips Avalon Monitors. *

Use with Intran® Plus Models:
IUP-600, IUP-650, IUP-700, IUP‑750
1/EA Intrauterine Pressure Monitor Cable. Model 650-640
* Product is CE Marked

For more information, please contact us by EMAIL or call 1-800-533-4984 | 1-801-566-1200.
